Astra Telematics AT402 on TrackeraX

The Astra Telematics AT402 is a GPS tracker that works with TrackeraX over the astra protocol on port 6103. From the platform it accepts custom commands.

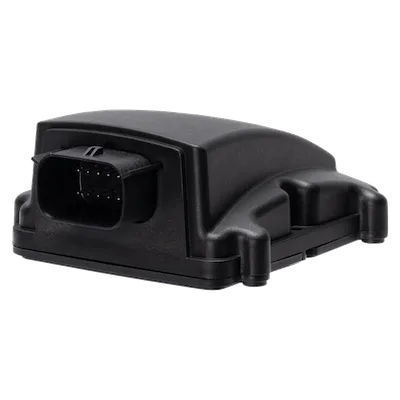

Astra Telematics AT402

Technical sheet

Brand
Astra Telematics
Model
AT402
Protocol
astra
Port
6103

See the astra protocol

How to connect it to TrackeraX

  1. Insert a SIM card with mobile data and set the APN of your carrier on the device.
  2. Set the server to the domain of your TrackeraX platform and the port 6103 (astra protocol).
  3. Create the device in TrackeraX with its IMEI or identifier and choose the Astra Telematics AT402 model.
  4. Wait for the first position and turn the parameters above into sensors and alerts.

The exact commands to set the APN and server depend on the firmware: check the manufacturer's manual or ask our support team.

Commands you can send from TrackeraX

Available from the web platform and the apps. The custom command sends any text the device firmware accepts.

  • Custom command custom

Data reported by the astra protocol

Parameters the server decodes from this protocol. In TrackeraX you turn them into sensors, alerts and reports. Each model reports the ones its firmware and wiring allow.

  • Battery voltage battery
  • Battery level batteryLevel
  • Coolant temperature coolantTemp
  • Driver ID (RFID / iButton) driverUniqueId
  • Fuel fuel
  • Fuel used fuelUsed
  • Engine hours hours
  • Odometer odometer
  • External power power
  • GSM signal rssi
  • Satellites sat
  • Service odometer serviceOdometer
  • Trip odometer tripOdometer

Numbered inputs and sensors

  • Analog inputs (adc1, adc2…)
  • IO elements (io1, io2…)
  • Temperature sensors (temp1, temp2…)

Protocol-specific attributes

acceleratorAvg · acceleratorMax · alarmCount · alarmQueue · dtc · engineLoadAvg · engineLoadMax · fmsEvents · fmsStatus · idleHours · obdEvents · obdStatus · rpmAvg · rpmMax · sensor · setpoint · tripCruise · tripFuelUsed · wheelSpeedAvg · wheelSpeedMax · xMax · xMin · yMax · yMin · zMax · zMin
