Atlanta Systems Genius on TrackeraX

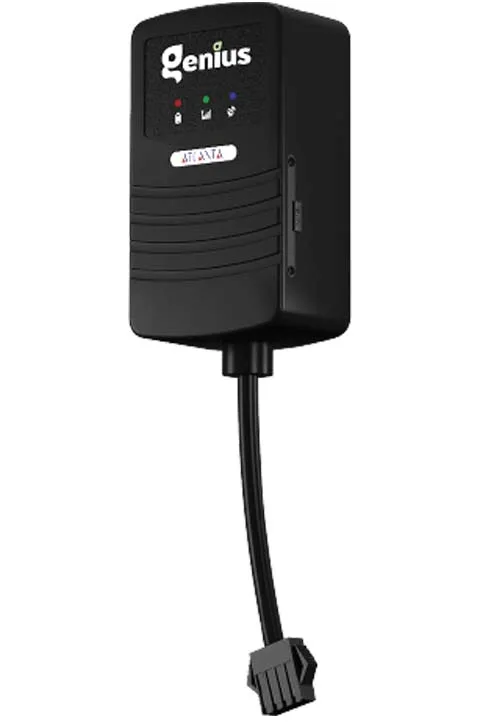

The Atlanta Systems Genius is a vehicle tracker. It has an internal battery. In TrackeraX it connects over the l100 protocol on port 6112 and accepts 1 command from the platform.

Technical sheet

Brand: Atlanta Systems
Model: Genius
Protocol: l100
Port: 6112

See the l100 protocol

How to connect it to TrackeraX

Insert a SIM card with mobile data and set the APN of your carrier on the device.
Set the server to the domain of your TrackeraX platform and the port 6112 (l100 protocol).
Create the device in TrackeraX with its IMEI or identifier and choose the Atlanta Systems Genius model.
Wait for the first position and turn the parameters above into sensors and alerts.

The exact commands to set the APN and server depend on the firmware: check the manufacturer's manual or ask our support team.

Hardware and connectivity

Internal battery

Commands you can send from TrackeraX

Available from the web platform and the apps. The custom command sends any text the device firmware accepts.

Custom command custom

Data reported by the l100 protocol

Parameters the server decodes from this protocol. In TrackeraX you turn them into sensors, alerts and reports. Each model reports the ones its firmware and wiring allow.

Battery voltage battery
Charging charge
Ignition ignition
Odometer odometer

Numbered inputs and sensors

Analog inputs (adc1, adc2…)
Temperature sensors (temp1, temp2…)

Alarms the protocol can report

Harsh acceleration hardAcceleration
Harsh braking hardBraking
Overspeed overspeed
SOS sos
Tampering tampering
