Suntech ST4290 on TrackeraX

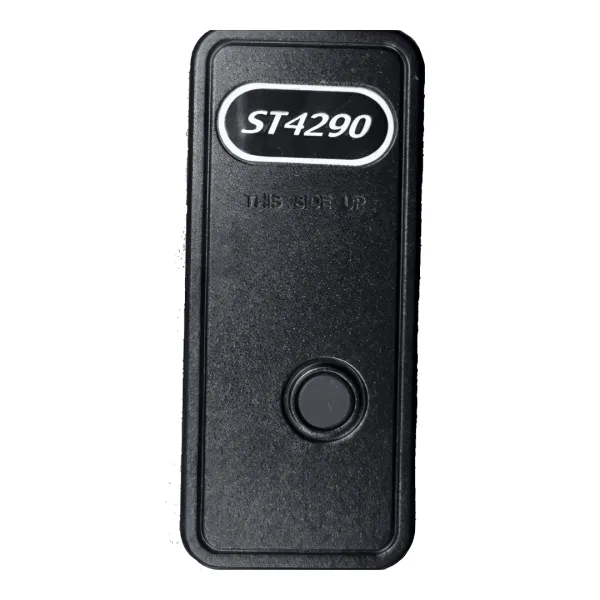

The Suntech ST4290 is a GPS tracker with 4G LTE. In TrackeraX it connects over the suntech protocol on port 6011 and accepts 8 commands from the platform.

Technical sheet

Brand: Suntech
Model: Suntech ST4290
Protocol: suntech
Port: 6011

See the suntech protocol

How to connect it to TrackeraX

Insert a SIM card with mobile data and set the APN of your carrier on the device.
Set the server to the domain of your TrackeraX platform and the port 6011 (suntech protocol).
Create the device in TrackeraX with its IMEI or identifier and choose the Suntech ST4290 model.
Wait for the first position and turn the parameters above into sensors and alerts.

The exact commands to set the APN and server depend on the firmware: check the manufacturer's manual or ask our support team.

Hardware and connectivity

4G LTE

Commands you can send from TrackeraX

Available from the web platform and the apps. The custom command sends any text the device firmware accepts.

Engine stop engineStop
Engine resume engineResume
Arm alarm alarmArm
Disarm alarm alarmDisarm
Request position positionSingle
Reboot device rebootDevice
Output control outputControl
Custom command custom

Data reported by the suntech protocol

Parameters the server decodes from this protocol. In TrackeraX you turn them into sensors, alerts and reports. Each model reports the ones its firmware and wiring allow.

Battery voltage battery
Driver ID (RFID / iButton) driverUniqueId
Fuel fuel
G-sensor gSensor
Engine hours hours
Ignition ignition
Digital inputs input
Motion motion
Odometer odometer
Digital outputs output
External power power
RPM rpm
GSM signal rssi
Satellites sat
Firmware version versionFw

Numbered inputs and sensors

Analog inputs (adc1, adc2…)
Inputs (in1, in2…)
IO elements (io1, io2…)
Outputs (out1, out2…)
Temperature sensors (temp1, temp2…)

Alarms the protocol can report

Accident accident
Door door
Geofence entry geofenceEnter
Geofence exit geofenceExit
Harsh acceleration hardAcceleration
Harsh braking hardBraking
Jamming jamming
Low battery lowBattery
Movement movement
Overspeed overspeed
Parking parking
Power cut powerCut
Power restored powerRestored
SOS sos
Vibration vibration

Protocol-specific attributes

alertData · alertModifier · assign · drivingQuality · fuel1 · fuel2 · mode · reason · serial · tag
