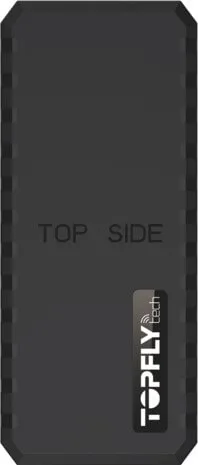

Topflytech TLW1-10A on TrackeraX

The Topflytech TLW1-10A is a vehicle tracker with Bluetooth and 4G LTE. It includes an internal battery. In TrackeraX it connects over the t800x protocol on port 6094 and accepts 1 command from the platform.

Technical sheet

Brand: Topflytech
Model: TLW1-10A
Protocol: t800x
Port: 6094

See the t800x protocol

How to connect it to TrackeraX

Insert a SIM card with mobile data and set the APN of your carrier on the device.
Set the server to the domain of your TrackeraX platform and the port 6094 (t800x protocol).
Create the device in TrackeraX with its IMEI or identifier and choose the Topflytech TLW1-10A model.
Wait for the first position and turn the parameters above into sensors and alerts.

The exact commands to set the APN and server depend on the firmware: check the manufacturer's manual or ask our support team.

Hardware and connectivity

Internal battery
Bluetooth
4G LTE

Commands you can send from TrackeraX

Available from the web platform and the apps. The custom command sends any text the device firmware accepts.

Custom command custom

Data reported by the t800x protocol

Parameters the server decodes from this protocol. In TrackeraX you turn them into sensors, alerts and reports. Each model reports the ones its firmware and wiring allow.

Battery voltage battery
Battery level batteryLevel
Coolant temperature coolantTemp
Device temperature deviceTemp
Driver ID (RFID / iButton) driverUniqueId
Engine load engineLoad
Fuel fuel
Fuel consumption fuelConsumption
Fuel level fuelLevel
Fuel used fuelUsed
G-sensor gSensor
SIM ICCID iccid
Ignition ignition
Digital inputs input
Odometer odometer
Mobile operator operator
Digital outputs output
External power power
RPM rpm
GSM signal rssi
Satellites sat
Throttle throttle

Numbered inputs and sensors

Analog inputs (adc1, adc2…)
Inputs (in1, in2…)
Outputs (out1, out2…)

Alarms the protocol can report

Fall fallDown
Geofence entry geofenceEnter
Geofence exit geofenceExit
Harsh acceleration hardAcceleration
Harsh braking hardBraking
Harsh cornering hardCornering
Jamming jamming
Low battery lowBattery
Low power lowPower
Overspeed overspeed
Power cut powerCut
Power restored powerRestored
Removal removing
SOS sos
Tampering tampering
Towing tow
Vibration vibration

Protocol-specific attributes

ac · airInput · airPressure · airTemp · alarmCode · lightSensor · networkBand · networkTechnology · solarPanel · tag
