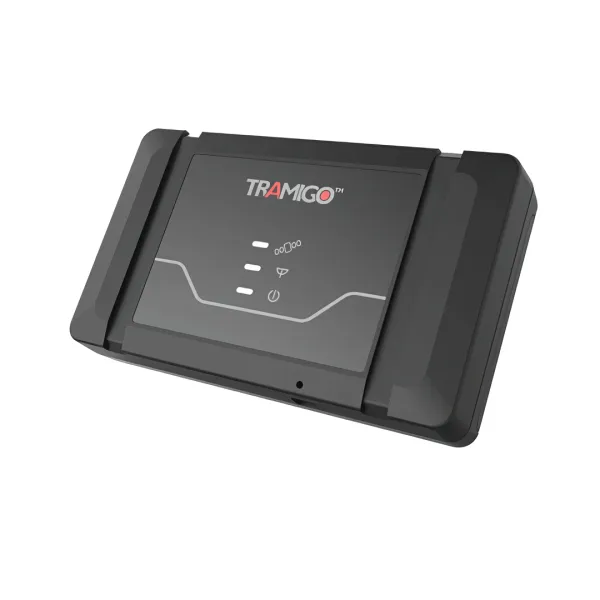

Tramigo T24 on TrackeraX
The Tramigo T24 is a GPS tracker. In TrackeraX it connects over the tramigo protocol on port 6073 and accepts 1 command from the platform.
Technical sheet
- Brand
- Tramigo
- Model
- Tramigo T24
- Protocol
- tramigo
- Port
- 6073
How to connect it to TrackeraX
- Insert a SIM card with mobile data and set the APN of your carrier on the device.
- Set the server to the domain of your TrackeraX platform and the port 6073 (tramigo protocol).
- Create the device in TrackeraX with its IMEI or identifier and choose the Tramigo T24 model.
- Wait for the first position and turn the parameters above into sensors and alerts.
The exact commands to set the APN and server depend on the firmware: check the manufacturer's manual or ask our support team.
Commands you can send from TrackeraX
Available from the web platform and the apps. The custom command sends any text the device firmware accepts.
- Custom command
custom
Data reported by the tramigo protocol
Parameters the server decodes from this protocol. In TrackeraX you turn them into sensors, alerts and reports. Each model reports the ones its firmware and wiring allow.
- Battery voltage
battery - Battery level
batteryLevel - Charging
charge - GPS status
gps - Ignition
ignition - Odometer
odometer - GSM signal
rssi - Satellites
sat - Visible satellites
satVisible - Trip odometer
tripOdometer
Protocol-specific attributes
gpsAntennaStatus · maxAcceleration · maxDeceleration
Other Tramigo models
- Tramigo FCT-NX
- Tramigo T22
- Tramigo T23
- Tramigo FCT
- Tramigo FCT Plus
- Tramigo IQL
- Tramigo NX
- Tramigo NXT
- Tramigo OBD Premium
- Tramigo T25
- Tramigo TF150
- Tramigo TF220
