iTriangle TS101 Basic EV CAN on TrackeraX

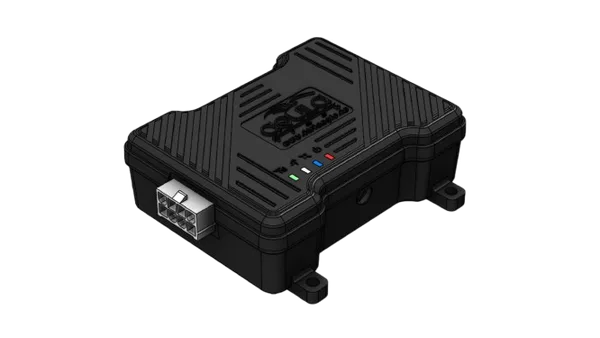

The iTriangle TS101 Basic EV CAN is a vehicle tracker with Bluetooth and GPS/GLONASS. It comes with an internal battery and CAN bus reading. It is rated IP65 against dust and water. In TrackeraX it connects over the aquila protocol on port 6089 and accepts 1 command from the platform.
Technical sheet
- Brand
- iTriangle
- Model
- TS101 Basic EV CAN
- Protocol
- aquila
- Port
- 6089
How to connect it to TrackeraX
- Insert a SIM card with mobile data and set the APN of your carrier on the device.
- Set the server to the domain of your TrackeraX platform and the port 6089 (aquila protocol).
- Create the device in TrackeraX with its IMEI or identifier and choose the iTriangle TS101 Basic EV CAN model.
- Wait for the first position and turn the parameters above into sensors and alerts.
The exact commands to set the APN and server depend on the firmware: check the manufacturer's manual or ask our support team.
Hardware and connectivity
- Internal battery
- Bluetooth
- CAN bus
- GLONASS
- IP65
Commands you can send from TrackeraX
Available from the web platform and the apps. The custom command sends any text the device firmware accepts.
- Custom command
custom
Data reported by the aquila protocol
Parameters the server decodes from this protocol. In TrackeraX you turn them into sensors, alerts and reports. Each model reports the ones its firmware and wiring allow.
- Battery voltage
battery - Charging
charge - Fault codes (DTC)
dtcs - Fuel
fuel - HDOP
hdop - Ignition
ignition - Odometer
odometer - External power
power - GSM signal
rssi - Satellites
sat
Numbered inputs and sensors
- Analog inputs (adc1, adc2…)
- Inputs (in1, in2…)
Protocol-specific attributes
obd · sensorData · sensorId
